无人驾驶10:行为预测

468次阅读
没有评论

预测模块工作过程

预测模块根据输入的地图数据,以及传感器融合的数据,生成并输出一些预测数据,

这些预测数据,包含了周围所有其他机动车以及其他移动物体的未来状态。

通常,这些预测数据可以展示为若干可能的运动轨迹。

预测数据还包括每条轨迹的几率大小

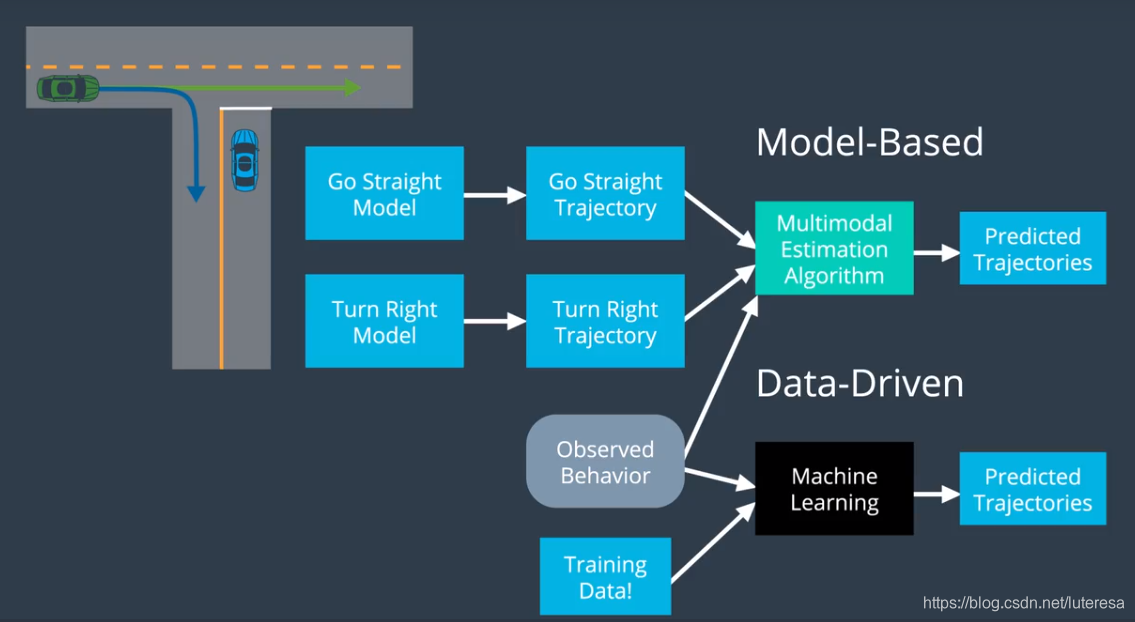

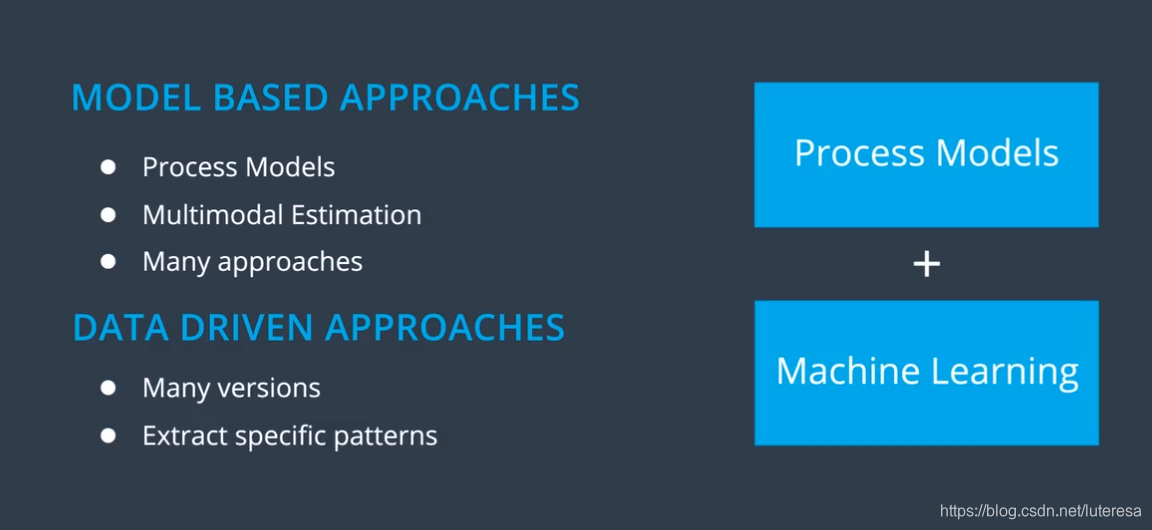

预测技术常用有两种:

1. 基于模型法

使用运动数学模型,预测运动轨迹,

2. 数据驱动法

依赖于机器学习和案例学习

无人驾驶 10:行为预测
基于模型方法吸收了有关物理限制的知识 (来自道路交通状况等),而机器学习可以根据大量历史数据来学习。

1. 数据驱动法

一般分两个阶段:

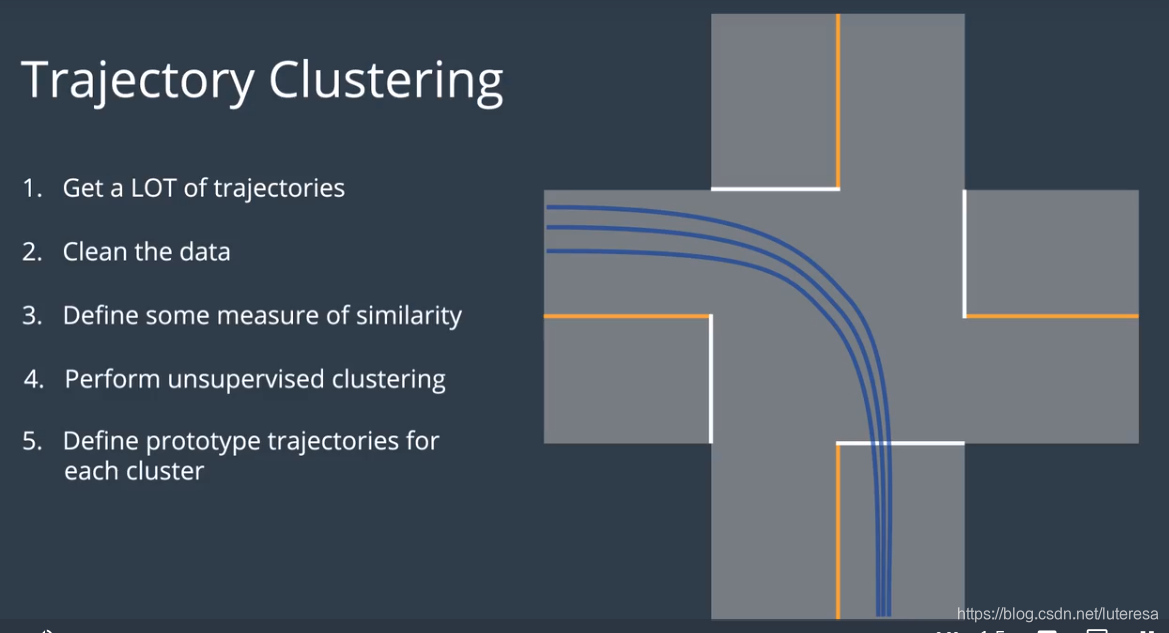

第一阶段,离线训练阶段,,算法从数据中学习模式;

用轨迹聚合算法
无人驾驶 10:行为预测

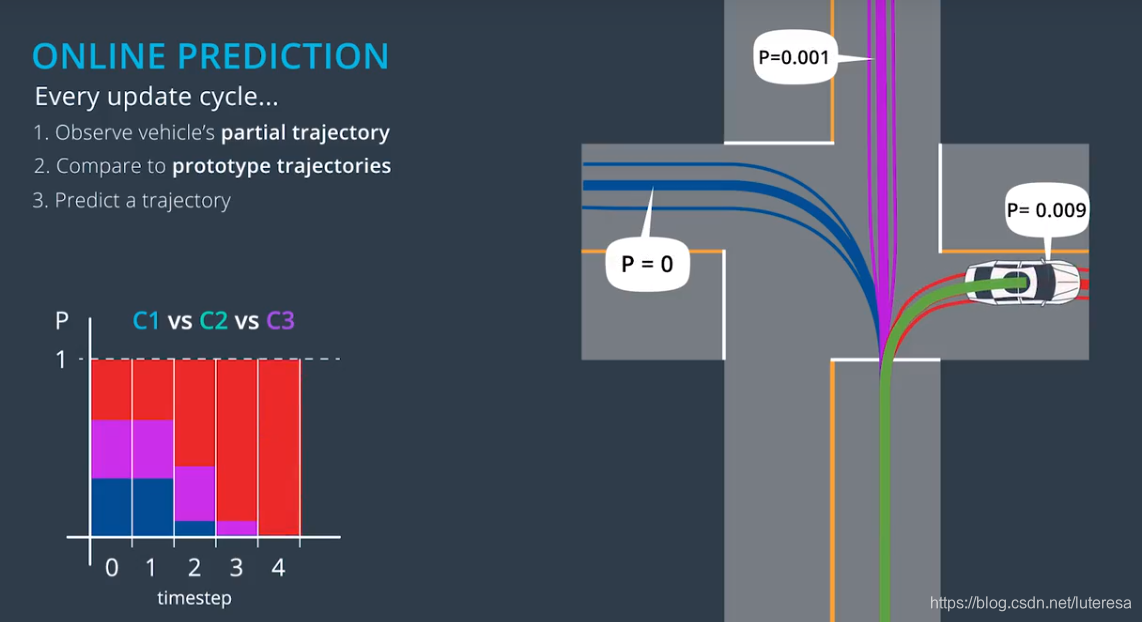

第二阶段,在线预测阶段,算法使用模型来预测;

无人驾驶 10:行为预测

2. 基于模型法

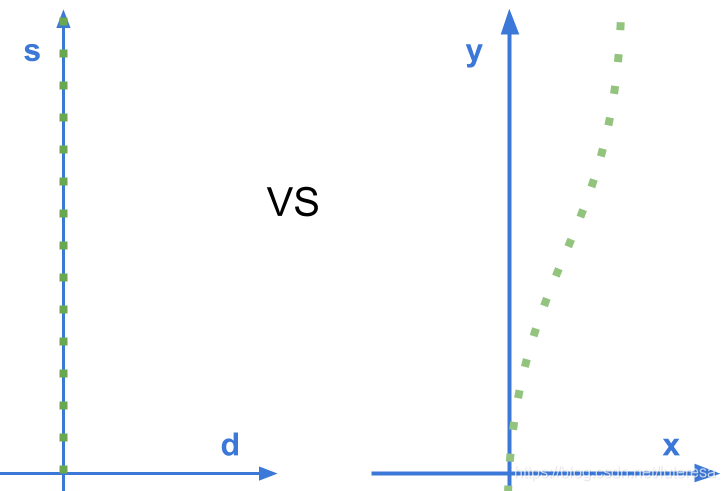

2.1Frenet Coordinates

以无人车为原点,横向位移为 d, 纵向位移为 s

无人驾驶 10:行为预测

The Paper
You can find the paper here: A comparative study of multiple-model algorithms for maneuvering target tracking

辅助材料
A comparative study of multiple-model algorithms for maneuvering target tracking

http://video.udacity-data.com.s3.amazonaws.com/topher/2017/June/5953fc34_a-comparative-study-of-multiple-model-algorithms-for-maneuvering-target-tracking/a-comparative-study-of-multiple-model-algorithms-for-maneuvering-target-tracking.pdf

2.2 Defining Process Models

You saw how process models can vary in complexity from very simple...

$$
\begin{bmatrix} \dot{s}\ \dot{d} \end{bmatrix}=\begin{bmatrix} s_{0} \ 0 \end{bmatrix} + {w}
$$

to very complex...

$$
\begin{bmatrix} \ddot{s} \ \ddot{d} \ \ddot{\theta} \end{bmatrix} = \begin{bmatrix} \dot{\theta}\dot{d} + as \ -\dot{\theta}\dot{s} + \frac{2}{m}(F{c,f}\cos\delta + F_{c,r}) \ \frac{2}{I_z} (lf F{c,f} - lrF{c,r}) \end{bmatrix} + {w}
$$

无人驾驶 10:行为预测

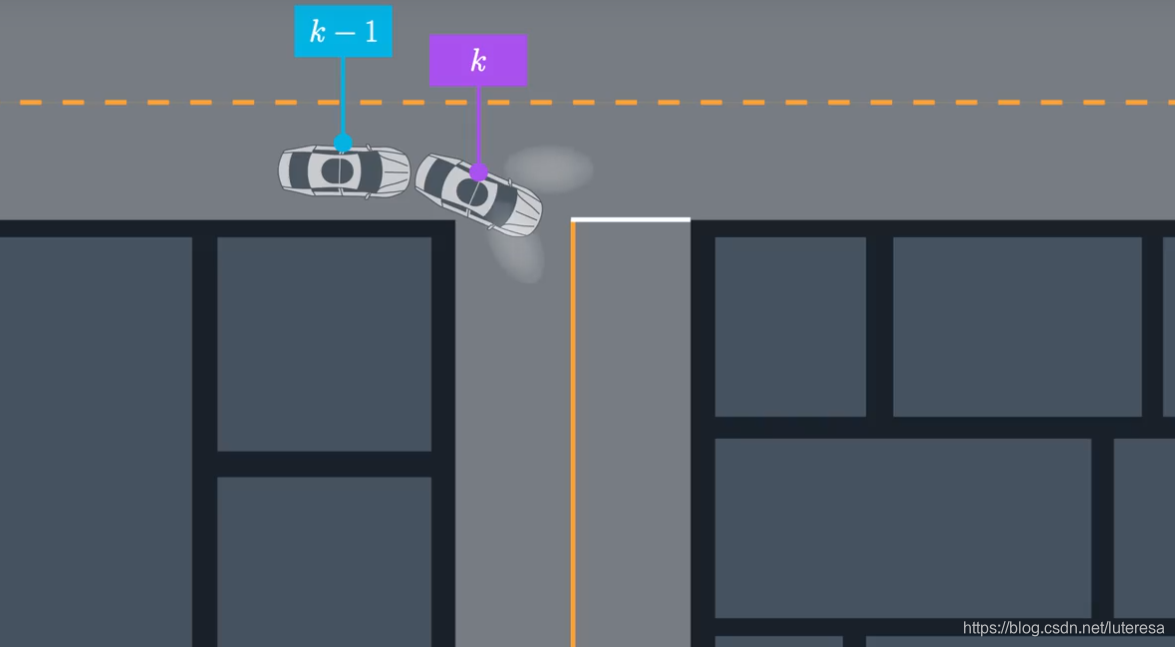

2.2 Using process models to compare driver behavior to what would be expected for each model.

无人驾驶 10:行为预测

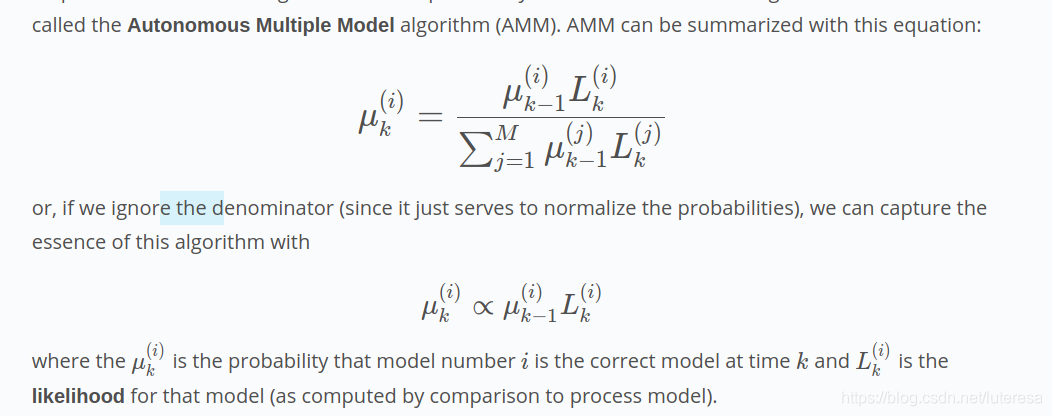

2.3 Classifying Intent with Multiple Model Algorithm

无人驾驶 10:行为预测

两种方法的对比

无人驾驶 10:行为预测

实践中,最好的预测方法通常是某种混合方法,结合以上两种方法的长处,

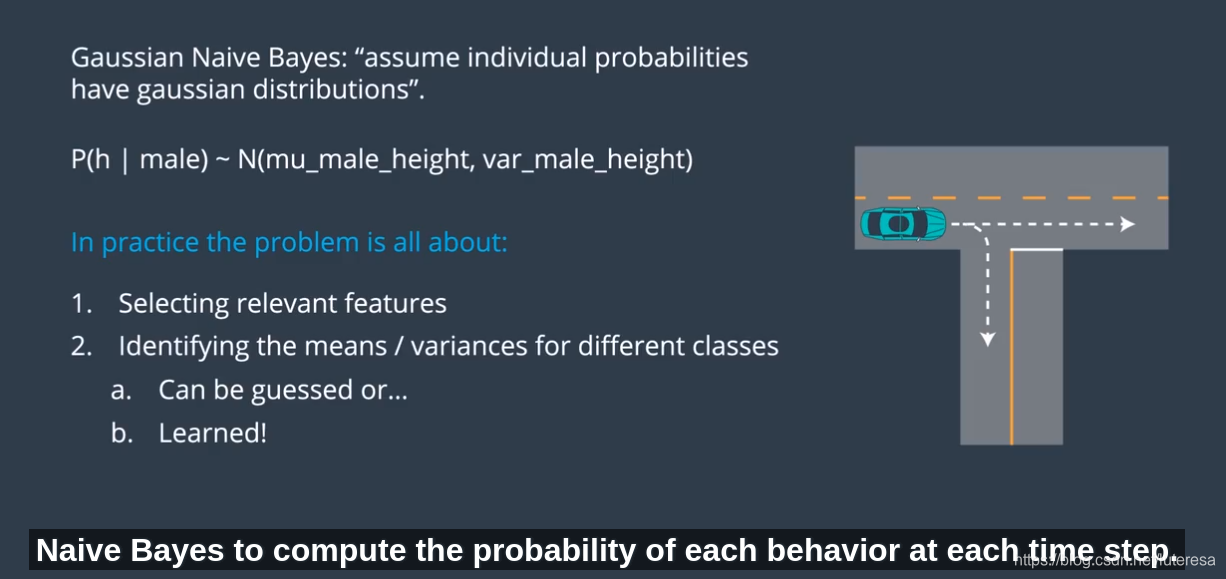

在行为分类的混合法中,经常使用的一个策略是,把分类器和过滤器相结合,

无人驾驶 10:行为预测

C++ 实现朴素贝叶斯

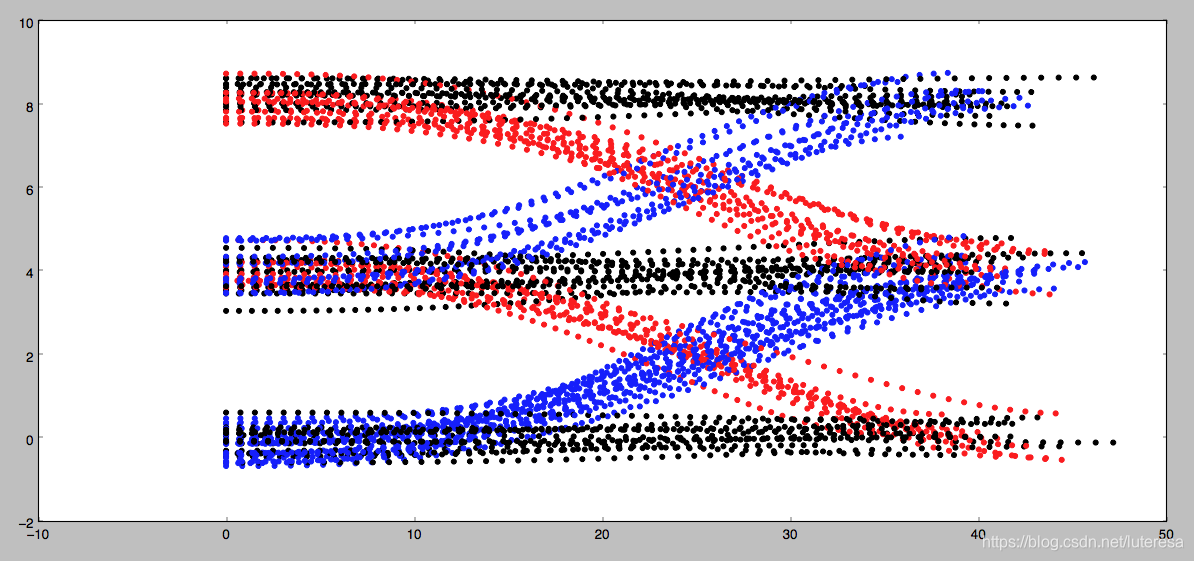

预测轨迹类别:

1.change lanes left (shown in blue)

2.keep lane (shown in black)

3.or change lanes right (shown in red)

无人驾驶 10:行为预测

Each coordinate contains 4 features:

s

d

$\dot{s}$

$\dot{d}$

Instructions

1.Implement the train(data, labels) method in the class GNB in classifier.cpp.

Training a Gaussian Naive Bayes classifier consists of computing and storing the mean and standard deviation from the data for each label/feature pair. For example, given the label "change lanes left”and the feature $\dot{s}$
, it would be necessary to compute and store the mean and standard deviation of $\dot{s} $

over all data points with the "change lanes left”label.

Additionally, it will be convenient in this step to compute and store the prior probability p(C_k) for each label C_k. This can be done by keeping track of the number of times each label appears in the training data.

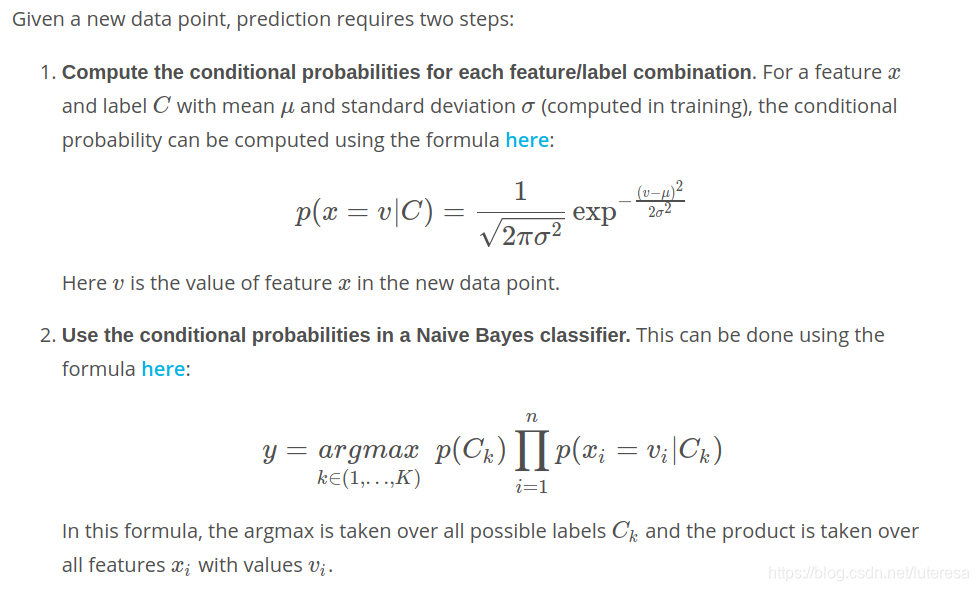

2.Implement the predict(observation) method in classifier.cpp.

无人驾驶 10:行为预测

Helpful Resources

sklearn documentation on GaussianNB

Wikipedia article on Naive Bayes / GNB

代码实现:

#include "classifier.h"
#include <math.h>
#include <string>
#include <vector>

using Eigen::ArrayXd;
using std::string;
using std::vector;

// Initializes GNB
GNB::GNB() {
  /**
   * TODO: Initialize GNB, if necessary. May depend on your implementation.
   */
  left_means = ArrayXd(4);
  left_means << 0,0,0,0;

  left_sds = ArrayXd(4);
  left_sds << 0,0,0,0;

  left_prior = 0;

  keep_means = ArrayXd(4);
  keep_means << 0,0,0,0;

  keep_sds = ArrayXd(4);
  keep_sds << 0,0,0,0;

  keep_prior = 0;

  right_means = ArrayXd(4);
  right_means << 0,0,0,0;

  right_sds = ArrayXd(4);
  right_sds << 0,0,0,0;

  right_prior = 0;
}

GNB::~GNB() {}

void GNB::train(const vector<vector<double>> &data,
                const vector<string> &labels) {
  /**
   * Trains the classifier with N data points and labels.
   * @param data - array of N observations
   *   - Each observation is a tuple with 4 values: s, d, s_dot and d_dot.
   *   - Example : [[3.5, 0.1, 5.9, -0.02],
   *                [8.0, -0.3, 3.0, 2.2],
   *                 ...
   *                ]
   * @param labels - array of N labels
   *   - Each label is one of "left", "keep", or "right".
   *
   * TODO: Implement the training function for your classifier.
   */

  // For each label, compute ArrayXd of means, one for each data class
  //   (s, d, s_dot, d_dot).
  // These will be used later to provide distributions for conditional
  //   probabilites.
  // Means are stored in an ArrayXd of size 4.

  float left_size = 0;
  float keep_size = 0;
  float right_size = 0;

  // For each label, compute the numerators of the means for each class
  //   and the total number of data points given with that label.
  for (int i=0; i<labels.size(); ++i) {if (labels[i] == "left") {// conversion of data[i] to ArrayXd
      left_means += ArrayXd::Map(data[i].data(), data[i].size());
      left_size += 1;
    } else if (labels[i] == "keep") {keep_means += ArrayXd::Map(data[i].data(), data[i].size());
      keep_size += 1;
    } else if (labels[i] == "right") {right_means += ArrayXd::Map(data[i].data(), data[i].size());
      right_size += 1;
    }
  }

  // Compute the means. Each result is a ArrayXd of means
  //   (4 means, one for each class)
  left_means = left_means/left_size;
  keep_means = keep_means/keep_size;
  right_means = right_means/right_size;

  // Begin computation of standard deviations for each class/label combination.
  ArrayXd data_point;

  // Compute numerators of the standard deviations.
  for (int i=0; i<labels.size(); ++i) {data_point = ArrayXd::Map(data[i].data(), data[i].size());
    if (labels[i] == "left"){left_sds += (data_point - left_means)*(data_point - left_means);
    } else if (labels[i] == "keep") {keep_sds += (data_point - keep_means)*(data_point - keep_means);
    } else if (labels[i] == "right") {right_sds += (data_point - right_means)*(data_point - right_means);
    }
  }

  // compute standard deviations
  left_sds = (left_sds/left_size).sqrt();
  keep_sds = (keep_sds/keep_size).sqrt();
  right_sds = (right_sds/right_size).sqrt();

  //Compute the probability of each label
  left_prior = left_size/labels.size();
  keep_prior = keep_size/labels.size();
  right_prior = right_size/labels.size();}

string GNB::predict(const vector<double> &sample) {
  /**
   * Once trained, this method is called and expected to return
   *   a predicted behavior for the given observation.
   * @param observation - a 4 tuple with s, d, s_dot, d_dot.
   *   - Example: [3.5, 0.1, 8.5, -0.2]
   * @output A label representing the best guess of the classifier. Can
   *   be one of "left", "keep" or "right".
   *
   * TODO: Complete this function to return your classifier's prediction
   */

  // Calculate product of conditional probabilities for each label.
  double left_p = 1.0;
  double keep_p = 1.0;
  double right_p = 1.0;

  for (int i=0; i<4; ++i) {left_p *= (1.0/sqrt(2.0 * M_PI * pow(left_sds[i], 2)))
            * exp(-0.5*pow(sample[i] - left_means[i], 2)/pow(left_sds[i], 2));
    keep_p *= (1.0/sqrt(2.0 * M_PI * pow(keep_sds[i], 2)))
            * exp(-0.5*pow(sample[i] - keep_means[i], 2)/pow(keep_sds[i], 2));
    right_p *= (1.0/sqrt(2.0 * M_PI * pow(right_sds[i], 2)))
            * exp(-0.5*pow(sample[i] - right_means[i], 2)/pow(right_sds[i], 2));
  }

  // Multiply each by the prior
  left_p *= left_prior;
  keep_p *= keep_prior;
  right_p *= right_prior;

  double probs[3] = {left_p, keep_p, right_p};
  double max = left_p;
  double max_index = 0;

  for (int i=1; i<3; ++i) {if (probs[i] > max) {max = probs[i];
      max_index = i;
    }
  }

  return this -> possible_labels[max_index];
}
