1 广度优先搜索算法(Breadth-First_Search)
核心思想是，从起始节点开始，将它的所有 Neigbors 加入到下一步要搜索的预备队列中；
然后从预备队列按一定规则选出一个节点，重复上一步骤；直到找到目的节点。
1.1 涉及到的数据结构
Graph: 有向图，每个节点可以指向的下一个临近节点组成一个列表；
数组: 存放待遍历的节点，常用队列来实现；
Visited 列表：存放已经遍历过的节点，避免遍历陷入死循环；
1.2 如何生成路线
遍历扩展的过程中，每个节点都保存其来源，待搜索遍历完成，通过这些记录进行回溯，就可以得到完整的路径。
1.3 有方向地进行搜索(启发式)
BFS 的扩展朝着所有方向，呈现同心圆状从起点向外扩展，非常蛮力地遍历整张图，直到终点出现。
用 启发式搜索，核心思想是，充分利用我们始终已知当前点和终点坐标这一信息，让扩展优先朝向终点方向进行，
也就是在数组中，按当前节点到终点距离排序，值越小，优先级越高。
2 Dijkstra 算法
从起点到终点可能存在多条路径，BFS 通过 Visited 来避免重复遍历，这也同时导致了默认最早遍历的路径当成最短路径。
Dijkstra 算法的主要思想是，$\underline{从多条路径中选择最短的那一条}$：
我们记录每个点从起点遍历到它所花费的当前最少长度，当我们通过另外一条路径再次遍历到这个点的时候，由于该点已经被遍历过了（已经加入了 came_from 数组），我们此时 不再直接跳过该点，而是比较一下目前的路径是否比该点最初遍历的路径花费更少，如果是这样，那就将该点纳入到新的路径当中去（修改该点在 came_from 中的值）。
按保存的代价值，对数组排序，值越小，优先级越高。
3 $A^\star$ 算法
A start 算法综合启发式算法和 Dijkstra 算法优点，既优先向目的点方向扩展，也尽可能最短路径。
将启发函数设计为：
$$
f(n) = g(n) + h(n)
$$
g(n): 从起点到当前节点的代价值；
h(n): 从当前节点到终点的代价值；
f(n)值越小，优先级越高；
注：h(n)不需要很精确，一般估算值小于或等于实际值。
# ----------
# User Instructions:
#
# Define a function, search() that returns a list
# in the form of [optimal path length, row, col]. For
# the grid shown below, your function should output
# [11, 4, 5].
#
# If there is no valid path from the start point
# to the goal, your function should return the string
# 'fail'
# ----------
# Grid format:
# 0 = Navigable space
# 1 = Occupied space
grid = [[0, 1, 0, 0, 0, 0],
[0, 1, 0, 0, 0, 0],
[0, 1, 0, 0, 0, 0],
[0, 1, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0]]
init = [0, 0]
goal = [len(grid)-1, len(grid[0])-1]
cost = 1
delta = [[-1, 0], # go up
[0,-1], # go left
[1, 0], # go down
[0, 1]] # go right
delta_name = ['^', '<', 'v', '>']
print("goal:",goal)
print(len(grid),len(grid[0]))
# h 的值全部为 0,A star 算法退回到上面普通搜索算法
#heuristic = [[0 for row in range(len(grid[0]))] for col in range(len(grid))]
def search_A_star(grid,init,goal,cost):
# ----------------------------------------
# modify the code below
# ----------------------------------------
closed = [[0 for col in range(len(grid[0]))] for row in range(len(grid))]
closed[init[0]][init[1]] = 1
expand = [[-1 for col in range(len(grid[0]))] for row in range(len(grid))]
action = [[-1 for col in range(len(grid[0]))] for row in range(len(grid))]
x = init[0]
y = init[1]
g = 0
h = heuristic[x][y]
f = g + h
open = [[f, g, h, x, y]]
found = False # flag that is set when search is complete
resign = False # flag set if we can't find expand
count = 0
while not found and not resign:
if len(open) == 0:
resign = True
return "Fail"
else:
open.sort()
open.reverse()
next = open.pop()
f = next[0]
g = next[1]
h = next[2]
x = next[3]
y = next[4]
expand[x][y] = count
count += 1
if x == goal[0] and y == goal[1]:
found = True
else:
for i in range(len(delta)):
x2 = x + delta[i][0]
y2 = y + delta[i][1]
if x2 >= 0 and x2 < len(grid) and y2 >=0 and y2 < len(grid[0]):
if closed[x2][y2] == 0 and grid[x2][y2] == 0:
g2 = g + cost
h2 = heuristic[x2][y2]
f2 = g2 + h2
open.append([f2, g2, h2, x2, y2])
closed[x2][y2] = 1
action[x2][y2] = i
for i in range(len(expand)):
print(expand[i])
policy = [['0' for row in range(len(grid[0]))] for col in range(len(grid))]
x = goal[0]
y = goal[1]
path = [[x,y]]
policy[x][y] = '*'
while x!= init[0] or y != init[1]:
x2 = x - delta[action[x][y]][0]
y2 = y - delta[action[x][y]][1]
policy[x2][y2] = delta_name[action[x][y]]
x = x2
y = y2
path.append((x,y))
for i in range(len(policy)):
print(policy[i])
path.reverse()
print(path) #打印最优路径
return expand
result = search_A_star(grid,init,goal,cost)4 Dynamic Programming

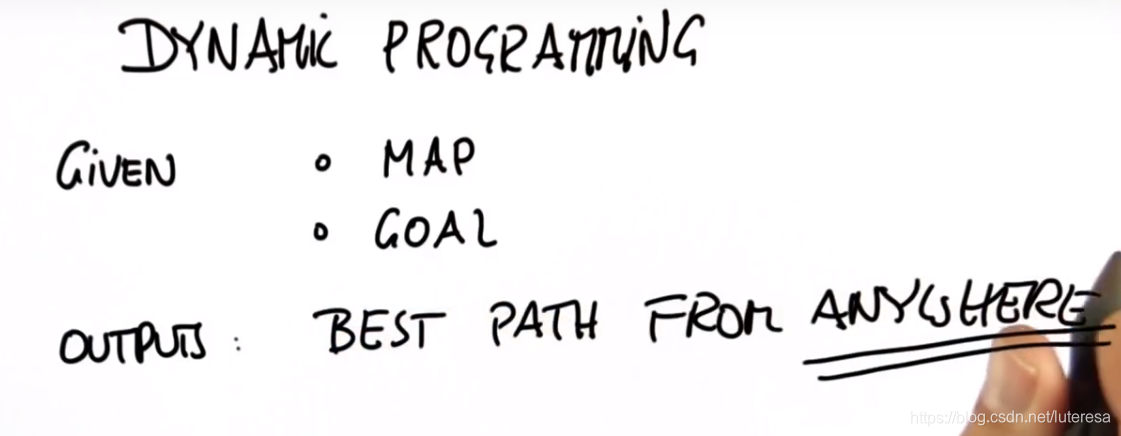

动态规划算法：不限于单个起点，应用于任意起点位置，搜索到目的点的最短路径。
因为无人车行驶的是一个随机的环境。
# ----------
# User Instructions:
#
# Write a function optimum_policy that returns
# a grid which shows the optimum policy for robot
# motion. This means there should be an optimum
# direction associated with each navigable cell from
# which the goal can be reached.
#
# Unnavigable cells as well as cells from which
# the goal cannot be reached should have a string
# containing a single space (' '), as shown in the
# previous video. The goal cell should have '*'.
# ----------
grid = [[0, 1, 0, 0, 0, 0],
[0, 1, 0, 0, 0, 0],
[0, 1, 0, 0, 0, 0],
[0, 1, 0, 0, 0, 0],
[0, 0, 0, 0, 1, 0]]
init = [0, 0]
goal = [len(grid)-1, len(grid[0])-1]
cost = 1 # the cost associated with moving from a cell to an adjacent one
delta = [[-1, 0], # go up
[0, -1], # go left
[1, 0], # go down
[0, 1]] # go right
delta_name = ['^', '<', 'v', '>']
def optimum_policy(grid,goal,cost):
# ----------------------------------------
# modify code below
# ----------------------------------------
value = [[99 for row in range(len(grid[0]))] for col in range(len(grid))]
policy = [[' ' for row in range(len(grid[0]))] for col in range(len(grid))]
change = True
while change:
change = False
print("-"*88)
for item in value:
print(item)
for x in range(len(grid)):
for y in range(len(grid[0])):
if goal[0] == x and goal[1] == y:
if value[x][y] > 0:
value[x][y] = 0
policy[x][y] = '*'
print("policy end,***")
change = True
elif grid[x][y] == 0:
for a in range(len(delta)):
x2 = x + delta[a][0]
y2 = y + delta[a][1]
if x2 >= 0 and x2 < len(grid) and y2 >= 0 and y2 < len(grid[0]) and grid[x2][y2] == 0:
v2 = value[x2][y2] + cost
#print("v2={},value[{}][{}]={}".format(v2,x,y,value[x][y]))
if v2 < value[x][y]:
print("v2={},value[{}][{}]={}".format(v2,x,y,value[x][y]))
change = True
value[x][y] = v2
policy[x][y] = delta_name[a] #打印出任意点到目标点的最优方案
print("grid:")
for i in range(len(grid)):
print(grid[i])
print("value:")
for i in range(len(value)):
print(value[i])
print("policy")
for i in range(len(policy)):
print(policy[i])
return policy
ret = optimum_policy(grid, goal, cost)----------------------------------------------------------------------------------------
[99, 99, 99, 99, 99, 99]
[99, 99, 99, 99, 99, 99]
[99, 99, 99, 99, 99, 99]
[99, 99, 99, 99, 99, 99]
[99, 99, 99, 99, 99, 99]
policy end,***
----------------------------------------------------------------------------------------
[99, 99, 99, 99, 99, 99]
[99, 99, 99, 99, 99, 99]
[99, 99, 99, 99, 99, 99]
[99, 99, 99, 99, 99, 99]
[99, 99, 99, 99, 99, 0]
v2=1,value[3][5]=99
----------------------------------------------------------------------------------------
[99, 99, 99, 99, 99, 99]
[99, 99, 99, 99, 99, 99]
[99, 99, 99, 99, 99, 99]
[99, 99, 99, 99, 99, 1]
[99, 99, 99, 99, 99, 0]
v2=2,value[2][5]=99
v2=2,value[3][4]=99
----------------------------------------------------------------------------------------
[99, 99, 99, 99, 99, 99]
[99, 99, 99, 99, 99, 99]
[99, 99, 99, 99, 99, 2]
[99, 99, 99, 99, 2, 1]
[99, 99, 99, 99, 99, 0]
v2=3,value[1][5]=99
v2=3,value[2][4]=99
v2=3,value[3][3]=99
v2=4,value[4][3]=99
----------------------------------------------------------------------------------------
[99, 99, 99, 99, 99, 99]
[99, 99, 99, 99, 99, 3]
[99, 99, 99, 99, 3, 2]
[99, 99, 99, 3, 2, 1]
[99, 99, 99, 4, 99, 0]
v2=4,value[0][5]=99
v2=4,value[1][4]=99
v2=4,value[2][3]=99
v2=4,value[3][2]=99
v2=5,value[4][2]=99
----------------------------------------------------------------------------------------
[99, 99, 99, 99, 99, 4]
[99, 99, 99, 99, 4, 3]
[99, 99, 99, 4, 3, 2]
[99, 99, 4, 3, 2, 1]
[99, 99, 5, 4, 99, 0]
v2=5,value[0][4]=99
v2=5,value[1][3]=99
v2=5,value[2][2]=99
v2=6,value[4][1]=99
----------------------------------------------------------------------------------------
[99, 99, 99, 99, 5, 4]
[99, 99, 99, 5, 4, 3]
[99, 99, 5, 4, 3, 2]
[99, 99, 4, 3, 2, 1]
[99, 6, 5, 4, 99, 0]
v2=6,value[0][3]=99
v2=6,value[1][2]=99
v2=7,value[4][0]=99
----------------------------------------------------------------------------------------
[99, 99, 99, 6, 5, 4]
[99, 99, 6, 5, 4, 3]
[99, 99, 5, 4, 3, 2]
[99, 99, 4, 3, 2, 1]
[7, 6, 5, 4, 99, 0]
v2=7,value[0][2]=99
v2=8,value[3][0]=99
----------------------------------------------------------------------------------------
[99, 99, 7, 6, 5, 4]
[99, 99, 6, 5, 4, 3]
[99, 99, 5, 4, 3, 2]
[8, 99, 4, 3, 2, 1]
[7, 6, 5, 4, 99, 0]
v2=9,value[2][0]=99
----------------------------------------------------------------------------------------
[99, 99, 7, 6, 5, 4]
[99, 99, 6, 5, 4, 3]
[9, 99, 5, 4, 3, 2]
[8, 99, 4, 3, 2, 1]
[7, 6, 5, 4, 99, 0]
v2=10,value[1][0]=99
----------------------------------------------------------------------------------------
[99, 99, 7, 6, 5, 4]
[10, 99, 6, 5, 4, 3]
[9, 99, 5, 4, 3, 2]
[8, 99, 4, 3, 2, 1]
[7, 6, 5, 4, 99, 0]
v2=11,value[0][0]=99
----------------------------------------------------------------------------------------
[11, 99, 7, 6, 5, 4]
[10, 99, 6, 5, 4, 3]
[9, 99, 5, 4, 3, 2]
[8, 99, 4, 3, 2, 1]
[7, 6, 5, 4, 99, 0]
grid:
[0, 1, 0, 0, 0, 0]
[0, 1, 0, 0, 0, 0]
[0, 1, 0, 0, 0, 0]
[0, 1, 0, 0, 0, 0]
[0, 0, 0, 0, 1, 0]
value:
[11, 99, 7, 6, 5, 4]
[10, 99, 6, 5, 4, 3]
[9, 99, 5, 4, 3, 2]
[8, 99, 4, 3, 2, 1]
[7, 6, 5, 4, 99, 0]
policy
['v', '','v','v','v','v']
['v', '','v','v','v','v']
['v', '','v','v','v','v']
['v', '','>','>','>','v']
['>', '>', '^', '^', '','*']5.Left Trun Policy
在实际驾驶场景中，还可以对不同路径添加相应权重，比如左转一般比较费，可以加大代价函数值；
# ----------
# User Instructions:
#
# Implement the function optimum_policy2D below.
#
# You are given a car in grid with initial state
# init. Your task is to compute and return the car's
# optimal path to the position specified in goal;
# the costs for each motion are as defined in cost.
#
# There are four motion directions: up, left, down, and right.
# Increasing the index in this array corresponds to making a
# a left turn, and decreasing the index corresponds to making a
# right turn.
forward = [[-1, 0], # go up
[0, -1], # go left
[1, 0], # go down
[0, 1]] # go right
forward_name = ['up', 'left', 'down', 'right']
# action has 3 values: right turn, no turn, left turn
action = [-1, 0, 1]
action_name = ['R', '#', 'L']
# EXAMPLE INPUTS:
# grid format:
# 0 = navigable space
# 1 = unnavigable space
grid = [[1, 1, 1, 0, 0, 0],
[1, 1, 1, 0, 1, 0],
[0, 0, 0, 0, 0, 0],
[1, 1, 1, 0, 1, 1],
[1, 1, 1, 0, 1, 1]]
init = [4, 3, 0] # given in the form [row,col,direction]
# direction = 0: up
# 1: left
# 2: down
# 3: right
goal = [2, 0] # given in the form [row,col]
cost = [2, 1, 20] # cost has 3 values, corresponding to making
# a right turn, no turn, and a left turn
# EXAMPLE OUTPUT:
# calling optimum_policy2D with the given parameters should return
# [[' ', ' ', ' ', 'R', '#', 'R'],
# [' ', ' ', ' ', '#', ' ', '#'],
# ['*', '#', '#', '#', '#', 'R'],
# [' ', ' ', ' ', '#', ' ', ' '],
# [' ', ' ', ' ', '#', ' ', ' ']]
# ----------
# ----------------------------------------
# modify code below
# ----------------------------------------
def optimum_policy2D(grid,init,goal,cost):
#四组 value 值，表示四个不同起始方向
value = [[[999 for row in range(len(grid[0]))] for col in range(len(grid))],
[[999 for row in range(len(grid[0]))] for col in range(len(grid))],
[[999 for row in range(len(grid[0]))] for col in range(len(grid))],
[[999 for row in range(len(grid[0]))] for col in range(len(grid))]]
policy = [[[' ' for row in range(len(grid[0]))] for col in range(len(grid))],
[[' ' for row in range(len(grid[0]))] for col in range(len(grid))],
[[' ' for row in range(len(grid[0]))] for col in range(len(grid))],
[[' ' for row in range(len(grid[0]))] for col in range(len(grid))]]
policy2D = [[' ' for row in range(len(grid[0]))] for col in range(len(grid))]
change = True
while change:
change = False
for x in range(len(grid)):
for y in range(len(grid[0])):
for orientation in range(4):
if goal[0] == x and goal[1] == y:
if value[orientation][x][y] > 0:
value[orientation][x][y] = 0
policy[orientation][x][y] = '*'
print("policy end,***")
change = True
elif grid[x][y] == 0:
for i in range(3):
o2 = (orientation + action[i])%4 # -1%4=3
x2 =x + forward[o2][0]
y2 = y + forward[o2][1]
if x2 >= 0 and x2 < len(grid) and y2 >= 0 and y2 < len(grid[0]) and grid[x2][y2] == 0:
v2 = value[o2][x2][y2] + cost[i]
if v2 < value[orientation][x][y]:
change = True
value[orientation][x][y] = v2
policy[orientation][x][y] = action_name[i]
#policy 存储任意起点到目标点的动作
for i in range(len(policy)):
print(forward_name[i])
for j in range(len(policy[0])):
print(policy[i][j])
print("-"*88)
print("="*88)
#print(policy)
x = init[0]
y = init[1]
orientation = init[2]
policy2D[x][y] = policy[orientation][x][y]
while policy[orientation][x][y] != '*':
if policy[orientation][x][y] == '#':
o2 = orientation
elif policy[orientation][x][y] == 'R':
o2 = (orientation -1)%4
elif policy[orientation][x][y] == 'L':
o2 = (orientation +1)%4
x = x + forward[o2][0]
y = y + forward[o2][1]
orientation = o2
policy2D[x][y] = policy[orientation][x][y]
return policy2Doptimum_policy2D(grid, init, goal, cost)policy end,***
policy end,***
policy end,***
policy end,***
up
['',' ',' ','R','R','L']
['',' ',' ','#',' ','#']
['*', 'L', 'L', '#', 'L', 'L']
['',' ',' ','#',' ',' ']
['',' ',' ','#',' ',' ']
----------------------------------------------------------------------------------------
left
['',' ',' ','L','#','#']
['',' ',' ','R',' ','L']
['*', '#', '#', '#', '#', '#']
['',' ',' ','R',' ',' ']
['',' ',' ','R',' ',' ']
----------------------------------------------------------------------------------------
down
['',' ',' ','#','R','#']
['',' ',' ','#',' ','#']
['*', 'R', 'R', 'R', 'R', 'R']
['',' ',' ',' ',' ',' ']
['',' ',' ',' ',' ',' ']
----------------------------------------------------------------------------------------
right
['',' ',' ','R','#','R']
['',' ',' ','R',' ','R']
['*', '#', '#', 'L', '#', 'L']
['',' ',' ','L',' ',' ']
['',' ',' ','L',' ',' ']
----------------------------------------------------------------------------------------
========================================================================================
[['',' ',' ','R','#','R'],
['',' ',' ','#',' ','#'],
['*', '#', '#', '#', '#', 'R'],
['',' ',' ','#',' ',' '],
['',' ',' ','#',' ',' ']]
正文完
