基于环境反馈的控制方法，叫做 反馈控制。

控制模块的目的是让无人车能够按照规划好的路径行驶，需要将环境当前的反馈和规划的参考量进行比较，得到当前偏离参考量的误差，并基于这个误差设计一定的算法来产生输出信号，使得误差不断变小，直到为 0.

PID 控制器是目前应用最广泛的控制理论。

PID 控制器是指 P(Proportion 比例)、I（Integral 积分），D(Derivative 微分)，这三项如何使用误差来产生控制指令。

1. P 控制

假设控制输出的是车辆的转角；

偏离航迹误差(Cross Track Error, CTE): 就是车辆到参考线的距离，用 CTE 作为误差度量, 即转向角与 CTE 成比例；

$$
sterring angle = K_p *e(t)
$$

e(t)是车辆在 t 时刻的 CTE，CTE 偏大时，转向角也大，反之偏转小一点；

在 P 控制器中，系数 $K_p$ 会直接影响实际控制效果，在合理范围内，$K_p$ 越大，控制效果越好。

伪代码实现：

def run(robot, tau, n=100, speed=1.0):
    x_trajectory = []
    y_trajectory = []
    for i in range(n):
        cte = robot.y
        steer = -tau * cte
        robot.move(steer, speed)
        x_trajectory.append(robot.x)
        y_trajectory.append(robot.y)
    return x_trajectory, y_trajectory

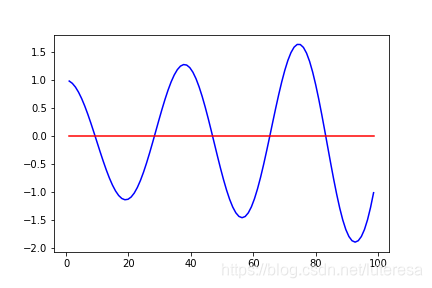

但是 P 控制器容易受零值影响，实际中表现为来回多次穿过参考线

为了矫正这个问题，我们引入一个新的参数，CTE 变化率

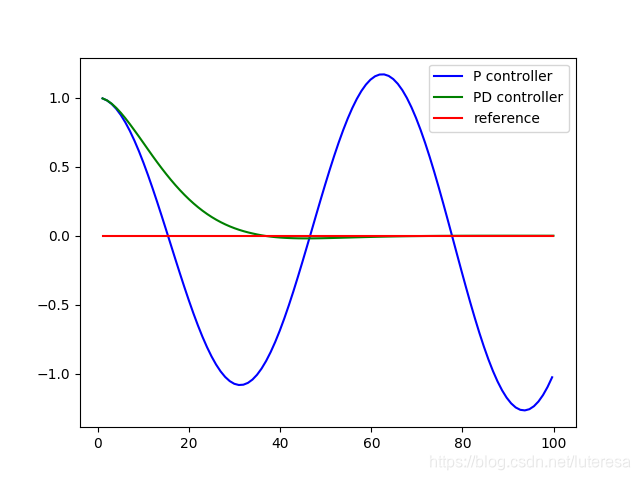

2. PD 控制

CTE 的变化率，描述无人车向着参考线移动的多块，如果无人车一直在参考线上运动，CTE 变化率就是 0；

$$
steering angle = K_p*e(t) + K_d\frac{de(t)}{dt}
$$

增大 P 系数会增大无人车向参考线运动的倾向，增大 D 系数则会增大无人车转向角快速变化的“阻尼”；

对于 P 偏大，D 偏小的系统，称为“欠阻尼系统(underdamped)”, 这种情况无人车将沿参考线震荡前行；

而 P 偏小，D 偏大的系统，称为“过阻尼(overdamped)”，这使得无人车需较长时间才能纠正误差；

合适的 P，D 系数，可以使无人车快速回到参考线，同时很好维持在参考线运动；

伪代码实现：

def run(robot, tau_p, tau_d, n=100, speed=1.0):
    x_trajectory = []
    y_trajectory = []
    prev_cte = robot.y
    for i in range(n):
        cte = robot.y
        diff_cte = cte - prev_cte
        prev_cte = cte
        steer = -tau_p * cte - tau_d * diff_cte
        robot.move(steer, speed)
        x_trajectory.append(robot.x)
        y_trajectory.append(robot.y)
    return x_trajectory, y_trajectory

系统偏差

PD 控制器可以保证正常的控制需求，但是容易受系统偏差影响；

比如当车轮存在偏移角(非理想化)，对人类驾驶来说，这问题不大，但是对于无人驾驶，会产生巨大的 CTE。

为解决熊偏差问题，引入一个控制量来消除这种误差。

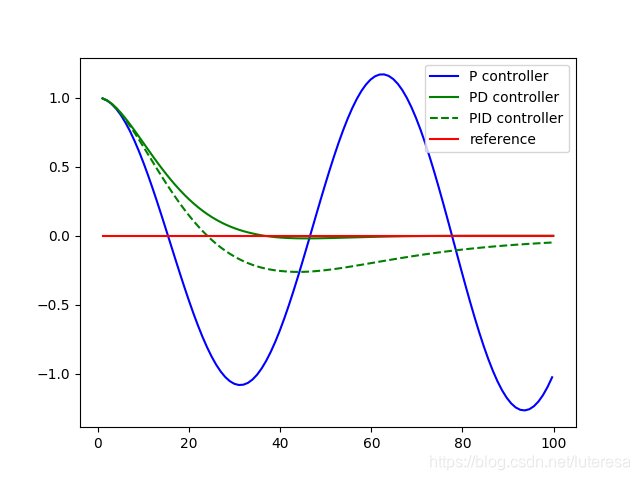

3 PID 控制器

引入一个积分项，加入到控制输出函数中

$$
steering angle = K_p*e(t) + K_d\frac{de(t)}{dt} + k_i\int_0^te(t)dt
$$

$K_i$ 积分项，本质上是车的实际路线和参考线的图形面积，加入积分项后，控制器会使车辆路线的积分尽可能小，从而避免稳态误差情况。

伪代码实现:

def run(robot, tau_p, tau_d, tau_i, n=100, speed=1.0):
    x_trajectory = []
    y_trajectory = []
    prev_cte = robot.y
    int_cte = 0
    for i in range(n):
        cte = robot.y
        diff_cte = cte - prev_cte
        prev_cte = cte
        int_cte += cte
        steer = -tau_p * cte - tau_d * diff_cte - tau_i * int_cte
        robot.move(steer, speed)
        x_trajectory.append(robot.x)
        y_trajectory.append(robot.y)
    return x_trajectory, y_trajectory

积分向系数的大小也会影响整个控制系统的稳定性，$K_i$ 过大，会使系统“震荡”运行，$K_i$ 过小又会需要较长时间才能修正车辆稳态误差。

PID 控制器，就是由 $K_p, K_i, K_d$ 三项共同决定的，其实现非常简单，但是这三个系数的选择缺很难。

PID 算法 Python 实现：

# -----------
# User Instructions
#
# Implement a P controller by running 100 iterations
# of robot motion. The steering angle should be set
# by the parameter tau so that:
#
# steering = -tau_p * CTE - tau_d * diff_CTE - tau_i * int_CTE
#
# where the integrated crosstrack error (int_CTE) is
# the sum of all the previous crosstrack errors.
# This term works to cancel out steering drift.
#
# Only modify code at the bottom! Look for the TODO.
# ------------

import random
import numpy as np
import matplotlib.pyplot as plt

# ------------------------------------------------
#
# this is the Robot class
#

class Robot(object):
    def __init__(self, length=20.0):
        """
        Creates robot and initializes location/orientation to 0, 0, 0.
        """
        self.x = 0.0
        self.y = 0.0
        self.orientation = 0.0
        self.length = length
        self.steering_noise = 0.0
        self.distance_noise = 0.0
        self.steering_drift = 0.0

    def set(self, x, y, orientation):
        """
        Sets a robot coordinate.
        """
        self.x = x
        self.y = y
        self.orientation = orientation % (2.0 * np.pi)

    def set_noise(self, steering_noise, distance_noise):
        """
        Sets the noise parameters.
        """
        # makes it possible to change the noise parameters
        # this is often useful in particle filters
        self.steering_noise = steering_noise
        self.distance_noise = distance_noise

    def set_steering_drift(self, drift):
        """
        Sets the systematical steering drift parameter
        """
        self.steering_drift = drift

    def move(self, steering, distance, tolerance=0.001, max_steering_angle=np.pi / 4.0):
        """
        steering = front wheel steering angle, limited by max_steering_angle
        distance = total distance driven, most be non-negative
        """
        if steering > max_steering_angle:
            steering = max_steering_angle
        if steering < -max_steering_angle:
            steering = -max_steering_angle
        if distance < 0.0:
            distance = 0.0

        # apply noise
        steering2 = random.gauss(steering, self.steering_noise)
        distance2 = random.gauss(distance, self.distance_noise)

        # apply steering drift
        steering2 += self.steering_drift

        # Execute motion
        turn = np.tan(steering2) * distance2 / self.length

        if abs(turn) < tolerance:
            # approximate by straight line motion
            self.x += distance2 * np.cos(self.orientation)
            self.y += distance2 * np.sin(self.orientation)
            self.orientation = (self.orientation + turn) % (2.0 * np.pi)
        else:
            # approximate bicycle model for motion
            radius = distance2 / turn
            cx = self.x - (np.sin(self.orientation) * radius)
            cy = self.y + (np.cos(self.orientation) * radius)
            self.orientation = (self.orientation + turn) % (2.0 * np.pi)
            self.x = cx + (np.sin(self.orientation) * radius)
            self.y = cy - (np.cos(self.orientation) * radius)

    def __repr__(self):
        return '[x=%.5f y=%.5f orient=%.5f]' % (self.x, self.y, self.orientation)

############# ADD / MODIFY CODE BELOW ####################
# ------------------------------------------------------------------------
#
# run - does a single control run

robot = Robot()
robot.set(0, 1, 0)

def run(robot, tau_p, tau_d, tau_i, n=100, speed=1.0):
    x_trajectory = []
    y_trajectory = []
    prev_cte = robot.y
    int_cte = 0
    for i in range(n):
        cte = robot.y
        diff_cte = cte - prev_cte
        prev_cte = cte
        int_cte += cte
        steer = -tau_p * cte - tau_d * diff_cte - tau_i * int_cte
        robot.move(steer, speed)
        x_trajectory.append(robot.x)
        y_trajectory.append(robot.y)
    return x_trajectory, y_trajectory

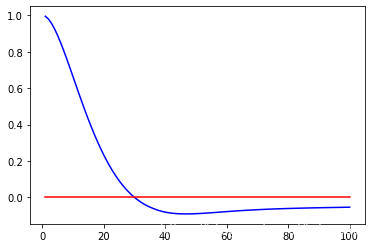

x_trajectory, y_trajectory = run(robot, 0.2, 3.0, 0.001)
n = len(x_trajectory)

plt.plot(x_trajectory, y_trajectory, 'b', label='PID controller')
plt.plot(x_trajectory, np.zeros(n), 'r', label='reference')
plt.savefig("PID_Contrl.png")

PID 系数调整方法：

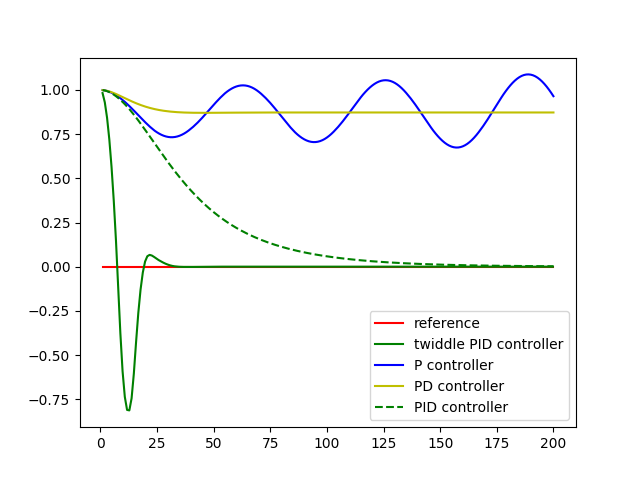

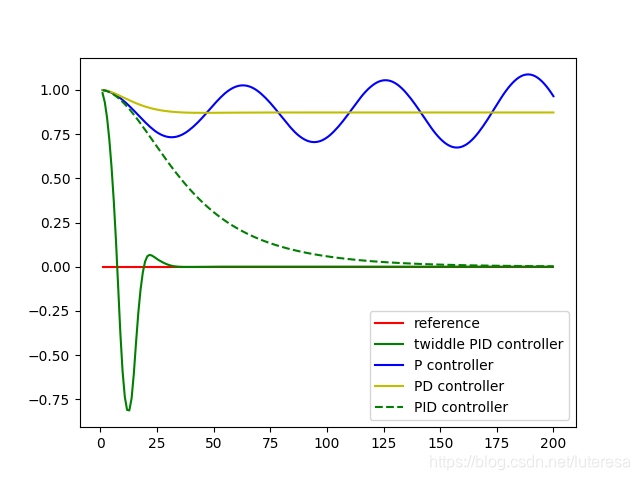

1.twiddle 算法：

如上例 PID 算法实现，返回一个 CTE 的平均值来度量系统的误差程度，问题转化为，寻找使 CTE 均值最小化的 PID 系数。

设立一组初始值, 比如系数初值 p =[0, 0, 0]; 系数调整范围初值 dp=[1,1,1]

循环遍历迭代系数 p，

首先调大 p[i]值，p[i] += dp[i]

若效果改善，保留该值，将对应系数范围加大 dp[i]*=1.1

若无改善，调小 p[i], p[i] -= 2*dp[i] ;

若有效，保留该值，将对应系数范围加大 dp[i]*=1.1

若无效，p[i]保留原值，缩小 dp[i]范围 dp[i]*=1.1；

循环迭代，通过缩放得到的参数越来越精确，直到收敛 (系数范围和 sum(dp[i]) 足够小).

这是一种局部爬山算法，但是它非常高效.

伪代码实现：

def twiddle(tol=0.2):
    p = [0, 0, 0]
    dp = [1, 1, 1]
    robot = make_robot()
    x_trajectory, y_trajectory, best_err = run(robot, p)

    it = 0
    while sum(dp) > tol:
        print("Iteration {}, best error = {}".format(it, best_err))
        for i in range(len(p)):
            p[i] += dp[i]
            robot = make_robot()
            x_trajectory, y_trajectory, err = run(robot, p)

            if err < best_err:
                best_err = err
                dp[i] *= 1.1
            else:
                p[i] -= 2 * dp[i]
                robot = make_robot()
                x_trajectory, y_trajectory, err = run(robot, p)

                if err < best_err:
                    best_err = err
                    dp[i] *= 1.1
                else:
                    p[i] += dp[i]
                    dp[i] *= 0.9
        it += 1
    return p

2. 实践调试方法

该方法是做优达学城项目过程中，mentor 给的建议，实践中效果挺不错，哈哈

具体参考：https://blog.csdn.net/luteresa/article/details/104582834
